Product content
Product content
- AORUS Z890 MASTER
- 2 x SATA Express cable
- G-Connector, Wi-Fi aerial, noise detection cable, 2 x thermal pads for M.2 SSD, 3 x thermal pads for M.2 SSD thick/thin, DDR Wind Blade
- Software
/asset/e/d/a/a/edaa5e920756c2b23893c41886d508b3faaf6554_255302.jpg)
/asset/1/b/c/6/1bc6596998581ec7be249aa222bcf0d918fda564_255302_2.jpg)
/asset/c/1/a/9/c1a9ad9fa93f0ef57460e9e742c899dc718e96b4_255302_3.jpg)
/asset/e/d/a/a/edaa5e920756c2b23893c41886d508b3faaf6554_255302.jpg)
/asset/1/b/c/6/1bc6596998581ec7be249aa222bcf0d918fda564_255302_2.jpg)
/asset/c/1/a/9/c1a9ad9fa93f0ef57460e9e742c899dc718e96b4_255302_3.jpg)
Please login to see the price and order.
Article-No.:
255302
Manufacturer-No.:
Z890 AORUS MASTER
EAN/GTIN:
4719331864903
WEEE Nummer
DE74106091
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Chipset Type
Intel Z890
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
3200 MHz, 4733 MHz (O.C.), 3900 MHz (O.C.), 4100 Mhz (O.C), 2900 MHz, 3100 MHz, 3950 MHz (O.C.), 3975 MHz (O.C.), 4467 MHz (O.C.), 4750 MHz (O.C.), 4667 MHz (O.C.), 2800 MHz, 3000 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 3700 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.)
Processor Socket
LGA1851 Socket
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
Intel Extreme Memory Profiles (XMP), Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
DTS:X Ultra, High Definition Audio
Audio Codec
Realtek ALC1220 / ES9118
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network Controller
Intel Wi-Fi 7 BE200NGW / Marvell AQtion AQC113C
Network
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 10 Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 2 x M.2 socket (2280 M.2 Key M slot), 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x1 mode), 2 x M.2 socket (2280/22110 M.2 Key M slot), 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 4.0 x16 (x4 mode)
Interfaces
Storage Interfaces
SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2
Storage Ports
4 x SATA-600 (RAID), 5 x M.2
USB / FireWire Ports Configuration (Active)
2 x USB4 + 6 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version), HWiNFO
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description

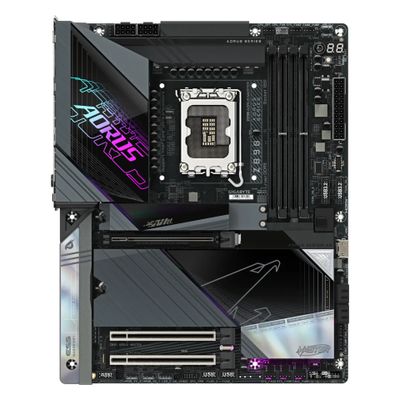

The GIGABYTE AORUS Z890 MASTER motherboard is engineered for high-performance computing. It features advanced connectivity options with multiple USB 3.2 Gen and Thunderbolt interfaces, allowing for efficient data transfer and peripheral connection. With support for the future of networking, including 10 Gigabit Ethernet and Wi-Fi 7, this motherboard ensures quick and reliable Internet access for all modern applications. Designed for gamers and creators alike, this motherboard supports Intel Core Ultra processors and accommodates DDR5 SDRAM with high overclocking capabilities. It boasts a robust power design with 18+1+2 phase power, ensuring stability even under heavy workloads. Enhanced thermal features like M.2 Thermal Guard and VRM heatsink design contribute to effective cooling, promoting longevity and optimal performance in hardware-intensive tasks.
- Efficient connectivity options

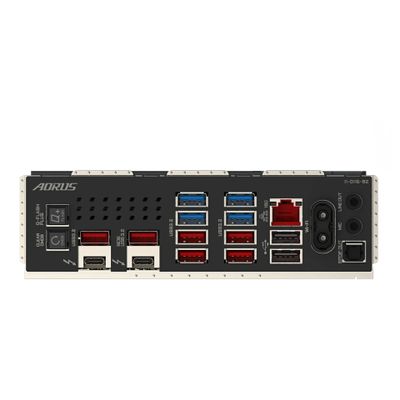

Equipped with multiple USB 3.2 Gen 1 and Gen 2 ports, USB4, and Thunderbolt 4/DisplayPort interfaces, this motherboard ensures smooth data transfer and connectivity with various devices. - Advanced audio capabilities
Features high-definition audio technology with an 8-channel setup, integrating the Realtek ALC1220 and ES9118 codecs, ensuring sound quality for all audio applications. - Enhanced thermal management
Designed with M.2 Thermal Guard and advanced VRM heatsink, the motherboard maintains optimal temperatures during usage, protecting components from heat damage. - Comprehensive RAM support
Supports DDR5 RAM across four DIMM slots with extensive overclocking options, providing flexibility and power for demanding applications and gaming. - Robust power delivery
The 18+1+2 phase power design ensures efficient power distribution and stability, catering to high-performance CPUs and enhancing system reliability.
