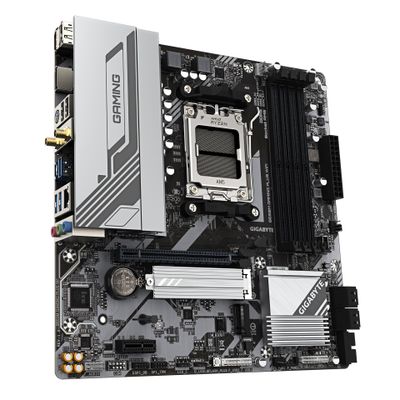

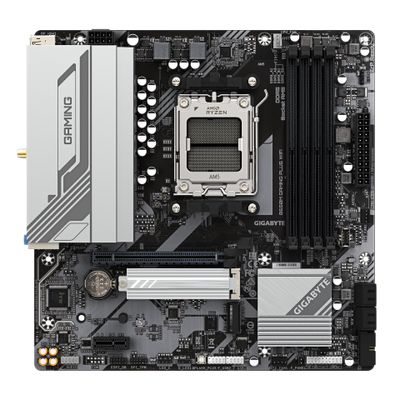

Gigabyte B650M GAMING PLUS WIFI - 1.X - Motherboard - micro ATX - Socket AM5 - AMD B650

1

0

1

Micro ATX

AMD B650

DDR5 SDRAM

Non-ECC

3900 MHz (O.C.), 2400 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 4000 MHz (O.C.)

Socket AM5

Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig

Ungepuffert

4 DIMM-Steckplätze

1 x USB-C 3.2 Gen 1 - Stiftleiste, 1 x Audio - Stiftleiste, 4 x USB 2.0 - Stiftleiste, 2 x USB 3.2 Gen 1 - Stiftleiste, 1 x SPI - Stiftleiste

AMD EXPO Technology, Intel Extreme Memory Profiles (XMP), Zwei-Kanal-Speicherarchitektur

256 GB

Grafikadapter (CPU erforderlich)

Soundkarte

High-Definition-Audio

High Definition Audio (8-Kanal)

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet

2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

1 x CPU, 1 x M.2 socket (2280/22.110 M.2 Key M Slot), 1 x M.2 socket (2580 M.2 Key M Steckplatz), 4 x DIMM 288-polig, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16

PCIe 4.0 -anschlussstellen: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10

Serial ATA-600 (RAID), M.2-Socket

USB 3.2 Gen 1, USB-C 3.2 Gen 1

4 x SATA-600 (RAID), 2 x M.2

1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0

1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0

GIGABYTE Control Center, LAN-Manager, Norton Internet Security (OEM Version)

24,4 cm

24,4 cm
