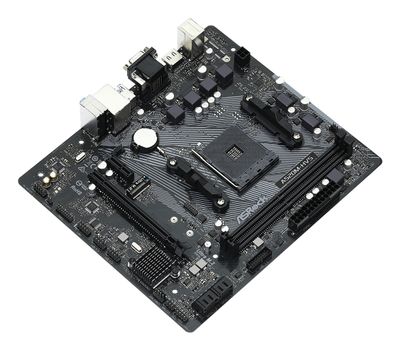

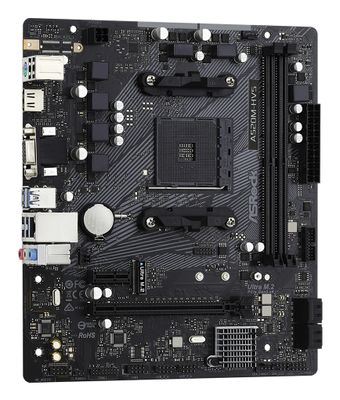

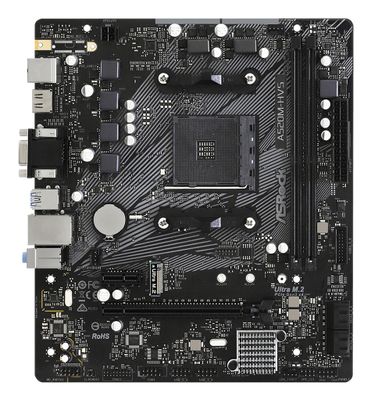

ASRock Mainboard A520M-HVS - Micro ATX - Socket AM4 - AMD A520

1

0

1

Micro ATX

Ryzen

AMD A520

DDR4 SDRAM

Non-ECC, ECC

3200 MHz, 4466 MHz (O.C.), 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.)

Socket AM4

ATX12V-Stecker, 4-polig, Hauptstromanschluss, 24-polig

Ungepuffert

2 DIMM-Steckplätze

1 x Audio - Stiftleiste, 1 x Seriell - Stiftleiste, 4 x USB 2.0 - Stiftleiste, 2 x USB 3.2 Gen 1 - Stiftleiste

Intel Extreme Memory Profiles (XMP), Zwei-Kanal-Speicherarchitektur

64 GB

Grafikadapter (CPU erforderlich)

Soundkarte

High-Definition-Audio

Realtek ALC887

High Definition Audio (8-Kanal)

Realtek RTL8111H

Gigabit Ethernet

1 x CPU, 1 x PCIe 3.0 x16, 2 x DIMM 288-polig, 1 x PCIe 3.0 x1

SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -anschlussstellen: 1 x Ultra M.2

Serial ATA-600 (RAID), Ultra M.2 socket

USB 3.2 Gen 1

4 x SATA-600 (RAID), 1 x Ultra M.2

4 x USB 3.2 Gen 1 + 2 x USB 2.0

2 x USB 3.2 Gen 1 + 4 x USB 2.0

ASRock A-Tuning, Antivirus (Testversion), Treiber & Dienstprogramme, Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN

23 cm

20,1 cm

3 Jahre Garantie
