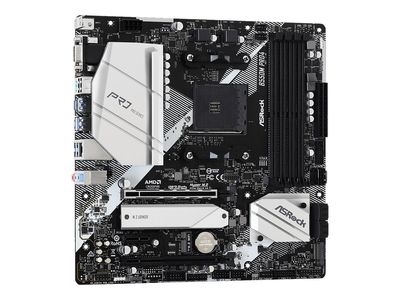

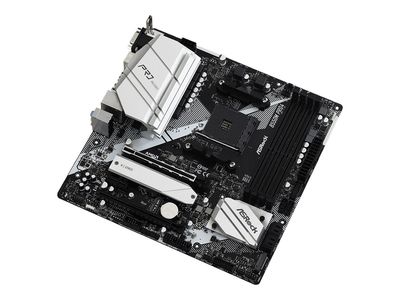

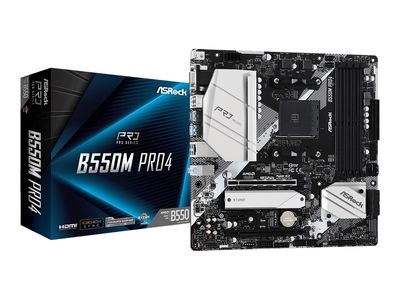

ASRock B550M Pro4 - Motherboard - micro ATX - Socket AM4 - AMD B550

1

0

1

Micro ATX

Ryzen

AMD B550

DDR4 SDRAM

Non-ECC, ECC (Betrieb in Nicht-ECC-Modus)

3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.), 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.)

Socket AM4

Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig

Ungepuffert

4 DIMM-Steckplätze

1 x Audio - Stiftleiste, 1 x Seriell - Stiftleiste, 4 x USB 2.0 - Stiftleiste, 4 x USB 3.2 Gen 1 - Stiftleiste

AMD Memory Profile (AMP), Zwei-Kanal-Speicherarchitektur, Unterstützte ECC-Module in ECC-Modus ausgeführt

128 GB

Grafikadapter (CPU erforderlich)

Soundkarte

High-Definition-Audio, Premium Blu-ray-Audiounterstützung

Realtek ALC1200

High Definition Audio (8-Kanal)

Realtek RTL8111H

Gigabit Ethernet

1 x CPU, 1 x M.2 socket (2230 M.2 Key E Steckplatz), 1 x PCIe 4.0 x16 (PCIe 4.0 x16 Modus (Ryzen Series CPUs Matisse); PCIe 3.0 x16 Modus (Ryzen Series APUs)), 4 x DIMM 288-polig, 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4-Modus)

SATA-600 -anschlussstellen: 6 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -anschlussstellen: 1 x M.2, PCIe 4.0 -anschlussstellen: 1 x M.2

Serial ATA-600 (RAID), M.2-Socket

USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2

6 x SATA-600 (RAID), 2 x M.2

1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0

4 x USB 3.2 Gen 1 + 4 x USB 2.0

ASRock A-Tuning, Antivirus (Testversion), Treiber & Dienstprogramme, Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN

24,4 cm

24,4 cm
