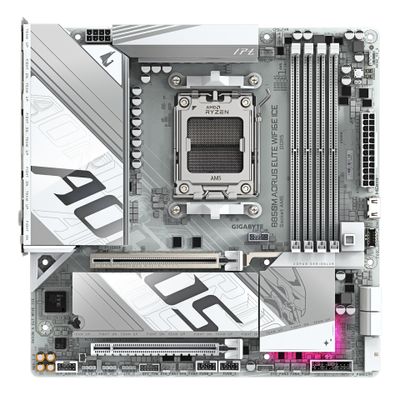

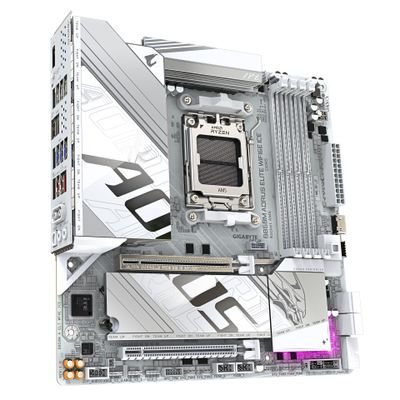

AORUS B850M ELITE WIFI6E ICE - Motherboard - micro ATX - Socket AM5 - AMD B850

1

0

1

Micro ATX

Ryzen

AMD B850

DDR5 SDRAM

Non-ECC

3900 MHz (O.C.), 4100 Mhz (O.C), 2900 MHz (O.C.), 3950 MHz (O.C.), 3975 MHz (O.C.), 2400 MHz, 2200 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 3700 MHz (O.C.)

Socket AM5

Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig

Ungepuffert

4 DIMM-Steckplätze

1 x USB-C 3.2 Gen 2x2 - Stiftleiste, HDMI - Stiftleiste, 1 x Audio - Stiftleiste, 4 x USB 2.0 - Stiftleiste, 2 x USB 3.2 Gen 1 - Stiftleiste, 1 x SPI - Stiftleiste

AMD EXPO Technology, Intel Extreme Memory Profiles (XMP), Zwei-Kanal-Speicherarchitektur

256 GB

Grafikadapter (CPU erforderlich)

Soundkarte

High-Definition-Audio

High Definition Audio (8-Kanal)

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet

Realtek RTL8852CE

2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

1 x CPU, 1 x PCIe 5.0 x16, 1 x M.2 socket (2280/22.110 M.2 Key M Slot), 1 x M.2 socket (2280/2580/22110/25110 M.2 Slot mit Key M), 4 x DIMM 288-polig, 1 x PCIe 3.0 x16 (x4-Modus)

PCIe 5.0 -anschlussstellen: 1 x M.2, SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -anschlussstellen: 1 x M.2

Serial ATA-600 (RAID), M.2-Socket

USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2

4 x SATA-600 (RAID), 2 x M.2

1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 5 x USB 3.2 Gen 1 + 4 x USB 2.0

1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0

Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control

24,4 cm

24,4 cm
